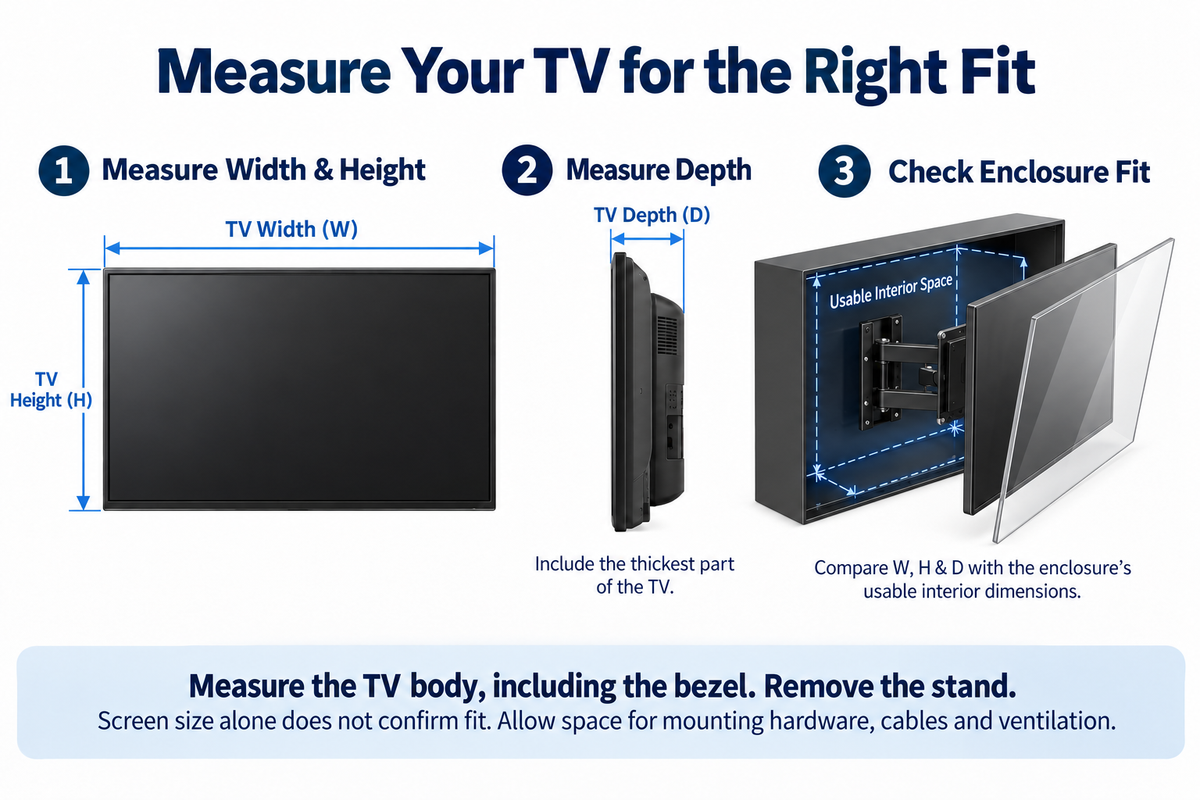

Start with your TV.
01
Width
Measure the full outside width, from edge to edge.
02
Height
Measure the TV body, including any fixed protrusions.
03
Depth
Measure the deepest point. Allow for mounting and cables.
FIT CHECK WORKSHEET
Tell us your dimensions.
Measure your TV without its stand. Confirm mounting and cable clearance before ordering.
Find installation instructions
| File | Size | Date | Download |
|---|---|---|---|
|
28-32 inch
4.75Mb/2025-06-01
|
4.75Mb | 2025-06-01 | Download |
|
40-43 inch
5.42Mb/2025-05-30
|
5.42Mb | 2025-05-30 | Download |
|
50-55 inch
9.46Mb/2025-06-02
|
9.46Mb | 2025-06-02 | Download |
|
60-65 inch
9.46Mb/2025-05-28
|
9.46Mb | 2025-05-28 | Download |
|
70-75 inch
6.36Mb/2025-05-28
|
6.36Mb | 2025-05-28 | Download |
|
80-85 inch
6.28Mb/2025-10-01
|
6.28Mb | 2025-10-01 | Download |
|
98-100 inch
17.93Mb/2026-06-22
|
17.93Mb | 2026-06-22 | Download |
